Get cell background color

Activity Description

Get the background color of the cells in an Excel worksheet.

Property Description

Output cell background color

Output variable, set the output variable to save the background color of the captured cell to this variable

Cell name

fill in the name of the cell to get the background color, the default value is A1

Worksheet name

Fill in the name of the Excel worksheet

Full path of the file

Fill in the full path of the Excel file, you can also click on the icon to the right of the input box to select the full path of the file

Example of using

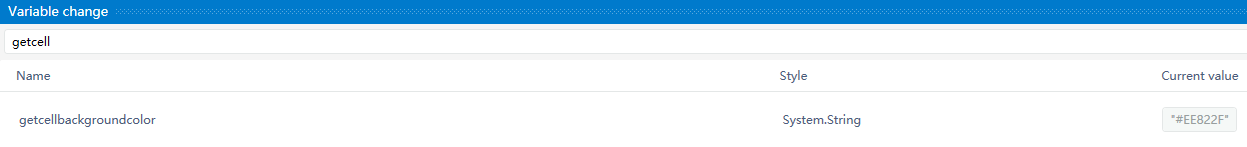

Run Result: !

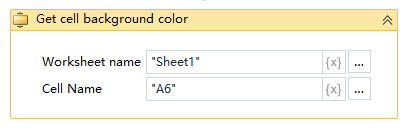

Execution steps: Get the background color of cell A6 in the specified Excel file, Sheet1 worksheet - Output the result of the background color to the bjs variable - Print out the content of the bjs variable using the log

Note: When executing the activity, first close the Excel file to be used for the activity.
