Data Table Slices

Activity Description

The table is sliced based on the input row and column values, and the result of the slicing is output to the datasheet through the variable

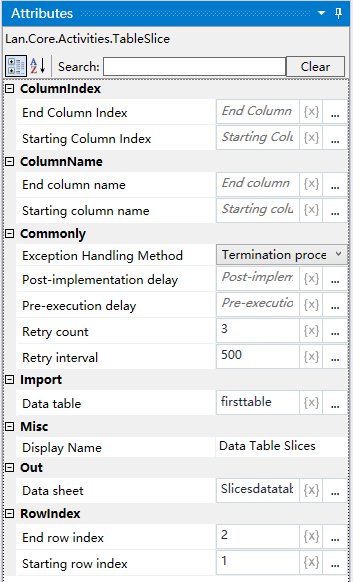

Property Description (index and name are mutually exclusive fields)

End column index

Outputs the column index of the end position

Start column index

Column index of the output start position

End column name

Outputs the name of the column at the end position

Starting column name

Outputs the column name of the start position

Outputs the data table

Define a variable to receive the data table after cutting

End row index

Outputs the row index at the end position

Start row index

Outputs the row index of the start position

Data table

Input the data table to be sliced

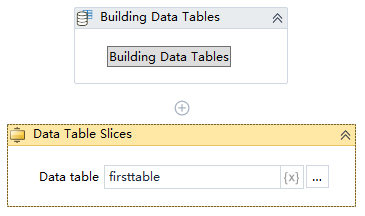

Example of using

Run Result:

Execution steps: Enter the corresponding cutting rule - Execute the activity - Output to variable and printout
